LossData API

Introduction

This document describes the ClaimShop Self-Service loss data API. This API can be used to get loss items data (of specific case) from Scalepoint ClaimShop Self-Service solution. This API returns only loss items which are not deleted and not saved as draft.

Main consumer of this API is insurance company.

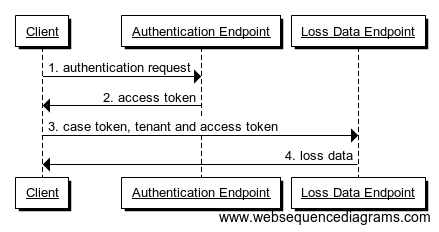

Overview

The process of obtaining settlement data can be divided into two steps:

• Authentication
• Get loss data

Authentication

You need an access_token in order to send data to the Loss Data Endpoint. This access token can be obtained from the Authentication Endpoint. Please refer to the documentation about details of authentication process.

API caller should request self-service:read scope from Authentication Endpoint.

Endpoints

Authentication endpoint

For authentication Scalepoint provides two endpoints – one for production and one for everything else.

Production endpoint https://accounts.scalepoint.com/connect/token

Non-production endpoint https://sandbox-accounts.scalepoint.com/connect/token

Loss Data API main endpoint

The endpoint which allows to obtain any loss case by its token is in the following format:

https://www.scalepoint.com/self-service/<country>/api/<tenant>/data/%<caseToken>%

Here is a loss case token which uniquely identifies ClaimShop Self-Service loss case.

The actual format of this will depend on the insurance company and the country in which it operates.

Assuming the following:

• Country: Denmark
• Tenant: ABC Insurance
• Case token: d1a72df4-f7d5-402c-a495-cc31b8b39a59

The endpoint could look something like this:

https://www.scalepoint.com/self-service/dk/api/abcinsurance/data/d1a72df4-f7d5-402c-a495-cc31b8b39a59

For testing purposes, you will be given access to a project server and the hostname-part of the endpoint would change accordingly:

https://<hostname>/self-service/dk/api/abcinsurance/data/d1a72df4-f7d5-402c-a495-cc31b8b39a59

Please discuss with your account manager, which project server you have been assigned in order to determine the actual endpoint.

Loss Data

Get Loss Data Request

Loss data GET request contains request parameters as a part of endpoint URL (see above) and authorization header.

Authorization header has name 'Authorization'. It has value built from access_token in following format:

Bearer access_token

Note the important space character between Bearer and access_token value.

Get Loss Data Response

Settlement data GET response contains settlement fields in JSON format in case of success (HTTP status code 200). Fields are described in Appendix A.

Loss data GET response contains loss fields in JSON format in case of success (HTTP status code 200). Fields are described in Appendix A.

NOTE: there are links to attachments. These files can be downloaded using authorization as used for loss data request

• Please refer to the JSON Schema for the JSON schema

Simplest successful response example:

{
  "case": {
    "externalReference": "",
    "companyCode": "trygforsikring",
    "token": "198E9596-F006-4FAB-B436-3F5FF5E71A1B",
    "draftItemsExist": false
  },

  "lossItems": [
    {
      "token" : "62AC85F7-D541-43C0-BC44-B4E2246432DC",
      "description": "Tokina AT-X 116 Pro DX II 11-16mm F/2.8 for Canon (Kameraobjektiver)",
      "quantity": 1,
      "age": 23,
      "categoryName": "Kamera Objektiver",
      "categoryGroupName": "Foto & Video",
      "newPrice": 1.00,
      "unableToUpload": false,
      "brand": "Tokina",
      "model": "AT-X 116 Pro DX II 11-16mm F/2.8 for Canon",
      "lossType": "1",
      "noDocumentation": false,
      "attachments": [
        {
          "fileGUID" : "27CFCE43-A6E3-4E75-8906-717501A28B90",
          "fileName": "",
          "fileLink": "https://project07.scalepoint.com/webapp/ScalePoint/dk/rest/file/somecompany/27CFCE43-A6E3-4E75-8906-717501A28B90"
        }
      ],
      "dateCreated": "2012-10-10",
      "dateModified": "2017-10-10"
    }
  ],
  "customerDetails": {
    "claimNumber": "",
    "firstName": "John",
    "lastName": "Doe",
    "zipCode": "2000",
    "city": "Frederiksberg",
    "email": "john.doe@gmail.com",
    "phone": "22 44 93 00",
    "loginUrl": ""
  }
}

In case of error response JSON can be ignored - instead HTTP status code should be used to determine error type.

Appendix A - loss data elements description

Root

JSON Path	Description	Required
case	Case data	Yes
lossItems	Loss items data	Yes
customerDetails	customer details data	Yes

Case

JSON Path	Description	Required
case.token	Case token UUID which uniquely identifies loss case	Yes
case.externalReference	External reference of the loss case (i.e. Insurance company case number), max length is 50	No
case.companyCode	Company code, max length is 50	Yes
case.draftItemsExist	true if Loss has at least 1 item which is draft and is not deleted	Yes

LossItems[]

JSON Path	Description	Required
lossItems[].token	Line id (UUID)	Yes
lossItems[].description	Item description, max length is 510	Yes
lossItems[].quantity	Item quantity	Yes
lossItems[].purchaseDate	Item purchase date	No
lossItems[].age	Item age	No
lossItems[].categoryName	Category name, max length is 50	Yes
lossItems[].categoryGroupName	Category group name, max length is 254	Yes
lossItems[].acquired	Acquisition type, max length is 256	No
lossItems[].purchasePrice	Item purchase price entered by user	No
lossItems[].newPrice	Item new price entered by user	No
lossItems[].repairPrice	Item repair price entered by user in case if item is being repaired	No
lossItems[].customerDemand	Customer demand price entered by user	No
lossItems[].customerNote	Note from customer, max length is 256	No
lossItems[].noDocumentation	true if user does not have documentation to provide	Yes
lossItems[].unableToUpload	Can item documentation be uploaded by user	No
lossItems[].brand	Brand of item, max length is 254	No
lossItems[].model	Model of item, max length is 64	No
lossItems[].lossType	Item loss type	No
lossItems[].repairStarted	Is item repair started	No
lossItems[].damageType	Item damage type, max length is 100	No
lossItems[].dateCreated	Loss item creation date	Yes
lossItems[].dateModified	Loss item last modification date	Yes
lossItems[].additionalQuestions	Additional questions, extra text for an item	No
lossItems[].attachments[]	List of uploaded Attachments	Yes

Attachments[]

JSON Path	Description	Required
lossItems[].attachments[].fileGUID	File id	Yes
lossItems[].attachments[].fileName	File name, max length is 256	Yes
lossItems[].attachments[].fileLink	File link	Yes

CustomerDetails

JSON Path	Description	Required
customerDetails.claimNumber	Claim number, max length is 50	No
customerDetails.firstName	First name, max length is 100	No
customerDetails.middleName	Middle name, max length is 100	No
customerDetails.lastName	Last name, max length is 100	No
customerDetails.zipCode	Zip code, max length is 20	No
customerDetails.city	City, max length is 30	No
customerDetails.email	Email, max length is 254	No
customerDetails.phone	Phone number, max length is 30	No
customerDetails.loginUrl	URL for customer login to ClaimShop Self-Service	Yes
